Sentinel 1 and 2#
The aim of this notebook is to guide you how to get Sentinel data using Sentinelhub and eo-learn. Price for subscription is described there https://www.sentinel-hub.com/pricing/.
The workflow for agriculture purposes is as follows :
Read shapefile that represent you field (boundaries or microplots)
Extract Sentinel-2 data and compute averaged NDVI time series to get a summary of the season vegetation dynamic.
Extract Sentinel-1 data and apply multitemporal speckle filtering
Set your working environment#
Import the packages#
[1]:
import warnings
warnings.filterwarnings("ignore")
import geopandas as gpd
import eocrops
from scipy.signal import savgol_filter
import eocrops.utils.base_functions as utils
import os
import numpy as np
import matplotlib.pyplot as plt
from eolearn.core import FeatureType, AddFeatureTask
from eocrops.inputs import utils_sh as utils_sh
from eocrops.inputs import sentinel1 as sentinel1
from eocrops.inputs import sentinel2 as sentinel2
from eocrops.tasks import cmd_otb as cmd_otb
from eocrops.tasks import preprocessing as preprocessing
from eocrops.tasks import curve_fitting as curve_fitting
from importlib import reload
Read your vector file (field boundaries)#
[2]:
# read field boundary data
shapefile_input = gpd.read_file("../data/layers/POLYGON.shp")
[3]:
api = ""
client_id = ""
client_secret = ""
config = utils_sh.config_sentinelhub_cred(api, client_id, client_secret)
# Provide here your planet API key
config.planet_key = ""
[4]:
time_period = ("2020-02-15", "2020-08-15")
kwargs = dict(polygon=shapefile_input, time_stamp=time_period, config=config)
Extract S2 data#
[7]:
warnings.filterwarnings("ignore")
patch = sentinel2.workflow_instructions_S2L2A(
**kwargs,
path_out=None, # you can specify here a path to save the EOPatch object
coverage_predicate=0.5,
interpolation={"interpolate": True}
) # you can add period_length in the dictionary to resample
[10]:
# RGB
plt.figure(figsize=(5, 5))
plt.imshow(
np.clip(patch.data["BANDS-S2-L2A"][4][..., [2, 1, 0]] * 2.5, 0, 1), vmin=0, vmax=1
)
plt.axis(False)
plt.show()
[9]:
patch
[9]:
EOPatch(
data={
BANDS-S2-L2A: numpy.ndarray(shape=(21, 23, 29, 10), dtype=float64)
CCC: numpy.ndarray(shape=(21, 23, 29, 1), dtype=float64)
CCW: numpy.ndarray(shape=(21, 23, 29, 1), dtype=float64)
CW: numpy.ndarray(shape=(21, 23, 29, 1), dtype=float64)
Cab: numpy.ndarray(shape=(21, 23, 29, 1), dtype=float64)
ECNorm: numpy.ndarray(shape=(21, 23, 29, 1), dtype=float64)
GNDVI: numpy.ndarray(shape=(21, 23, 29, 1), dtype=float64)
LAI: numpy.ndarray(shape=(21, 23, 29, 1), dtype=float64)
NDVI: numpy.ndarray(shape=(21, 23, 29, 1), dtype=float64)
NDVIre: numpy.ndarray(shape=(21, 23, 29, 1), dtype=float64)
NDWI: numpy.ndarray(shape=(21, 23, 29, 1), dtype=float64)
fapar: numpy.ndarray(shape=(21, 23, 29, 1), dtype=float64)
fcover: numpy.ndarray(shape=(21, 23, 29, 1), dtype=float64)
}
mask={
IS_DATA: numpy.ndarray(shape=(21, 23, 29, 1), dtype=int64)
VALID_DATA: numpy.ndarray(shape=(21, 23, 29, 1), dtype=bool)
}
scalar={
COVERAGE: numpy.ndarray(shape=(21, 1), dtype=float64)
}
data_timeless={
DEM: numpy.ndarray(shape=(23, 29, 1), dtype=uint16)
FIELD_ID: numpy.ndarray(shape=(23, 29, 1), dtype=uint16)
}
mask_timeless={
MASK: numpy.ndarray(shape=(23, 29, 1), dtype=bool)
}
bbox=BBox(((449309.8282090598, 5391449.618934479), (449595.6157164158, 5391675.473395558)), crs=CRS('32630'))
timestamp=[datetime.datetime(2020, 3, 17, 11, 17, 50), ..., datetime.datetime(2020, 8, 4, 11, 17, 45)], length=21
)
[11]:
masking = preprocessing.MaskPixels(["NDVI", "LAI"])
patch = masking.execute(patch, erosion=1)
[12]:
# NDVI
plt.figure(figsize=(5, 5))
plt.imshow(
patch.data["NDVI"][
10,
].squeeze()
)
plt.axis(False)
plt.show()
[13]:
# LAI Time Series from masked field
variable = "LAI"
from importlib import reload
curve_fitting = reload(curve_fitting)
# Subset the time series between doy 30 and 260 => useful for double logistic smoothing
curve_fit = curve_fitting.DoublyLogistic(range_doy=(0, 300))
doy, ts_mean = curve_fit.get_time_series_profile(
patch, feature=variable, feature_mask="MASK"
)
doy_dl, fitted = curve_fit.execute(patch, feature=variable, feature_mask="MASK")
plt.plot(doy_dl, fitted, label="Double logistic")
plt.plot(doy, ts_mean, label="Original")
plt.legend(loc="upper left")
plt.show()
[14]:
# Parameters from doubly logistic
# α1 is seasonal minimum greenness
# α2 is the seasonal amplitude
# α3 controls the green-up rate
# α4 is the green-up inflection point
# α5 controls the mid-growing season greenness trajectory.
curve_fit.params[2:]
[14]:
array([ -4.9830466 , -24.63645053, 0.39373442, -37.43317387,
0.57326097])
[15]:
# Peak of the season is at 31/05
time_argmax = np.nanargmax(ts_mean)
patch.timestamp[time_argmax]
[15]:
datetime.datetime(2020, 5, 31, 11, 17, 40)
[16]:
# If you would like to save the data in .tif format (e.g. NDVI on the first date)
from eolearn.io import ExportToTiffTask
index_time = 0
date = str(patch.timestamp[index_time]).split(" ")[0]
export = ExportToTiffTask(
feature=(FeatureType.DATA, "NDVI"),
folder=os.path.join("your_path_" + date),
band_indices=[0],
date_indices=[index_time],
)
patch = export.execute(patch)
Extract Sentinel-1 data#
[5]:
s1_eopatch = sentinel1.workflow_instructions_S1IW(
**kwargs, speckle_lee_window=3, orbit_direction="ASC", backCoeff="SIGMA0_ELLIPSOID"
)
[6]:
# Compute Radar Vegetation Index
VV = s1_eopatch.data["BANDS-S1-IW"][..., 0]
VH = s1_eopatch.data["BANDS-S1-IW"][..., 1]
RVI = (4 * VH) / (VH + VV)
[7]:
# Add the feature to the EOPatch
add_rvi = AddFeatureTask((FeatureType.DATA, "RVI"))
add_rvi.execute(eopatch=s1_eopatch, data=RVI[..., np.newaxis])
masking = preprocessing.MaskPixels(["RVI"])
s1_eopatch = masking.execute(s1_eopatch)
[8]:
# Display RVI from SIGMA0 without any speckle filtering
s1_eopatch = masking.execute(s1_eopatch)
plt.figure(figsize=(5, 5))
plt.imshow(
s1_eopatch.data["RVI"][
15,
].squeeze()
)
plt.axis(False)
plt.show()
[9]:
# RVI Time Series from masked field
variable = "RVI"

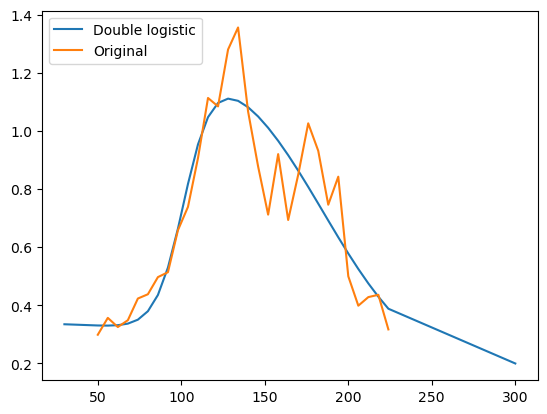

curve_fit = curve_fitting.DoublyLogistic(range_doy=(30, 300))
doy, ts_mean = curve_fit.get_time_series_profile(
s1_eopatch, feature=variable, feature_mask="MASK"
)
doy_dl, fitted = curve_fit.execute(s1_eopatch, feature=variable, feature_mask="MASK")
plt.plot(doy_dl, fitted, label="Double logistic")
plt.plot(doy, ts_mean, label="Original")
plt.legend(loc="upper left")
plt.show()
[15]:

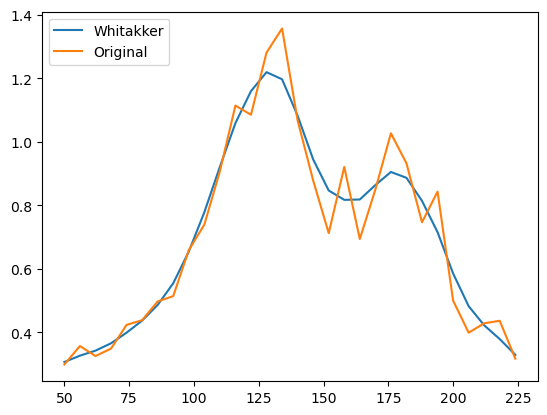

# Whitakker smoothing: you need to have modape installed ! https://github.com/WFP-VAM/modape
# Smooth the signal
print(doy) # chek if regularly spaced
array_resample_vh_upper = curve_fit.fit_whitakker(
ts_mean, degree_smoothing=2, weighted=True
) # weighted = True gives more weight to high values
plt.plot(doy, array_resample_vh, label="Whitakker")
plt.plot(doy, ts_mean, label="Original")
plt.legend(loc="upper left")
plt.show()
[ 50. 56. 62. 68. 74. 80. 86. 92. 98. 104. 110. 116. 122. 128.
134. 140. 146. 152. 158. 164. 170. 176. 182. 188. 194. 200. 206. 212.
218. 224.]
You can easily download and install OTB https://www.orfeo-toolbox.org/CookBook/Installation.html#linux, which allows you to apply Quegan multitemporal speckle filtering
[22]:
# Can take around 10 seconds
mutlitemp = cmd_otb.MultitempSpeckleFiltering(
otb_path="/home/johann/Documents/OTB-8.0.1-Linux64/bin", window=3
)
s1_eopatch = mutlitemp.execute(s1_eopatch)
